Four Sides Moulder MBQ630A

Model Number:

MBQ630A

Advantages:

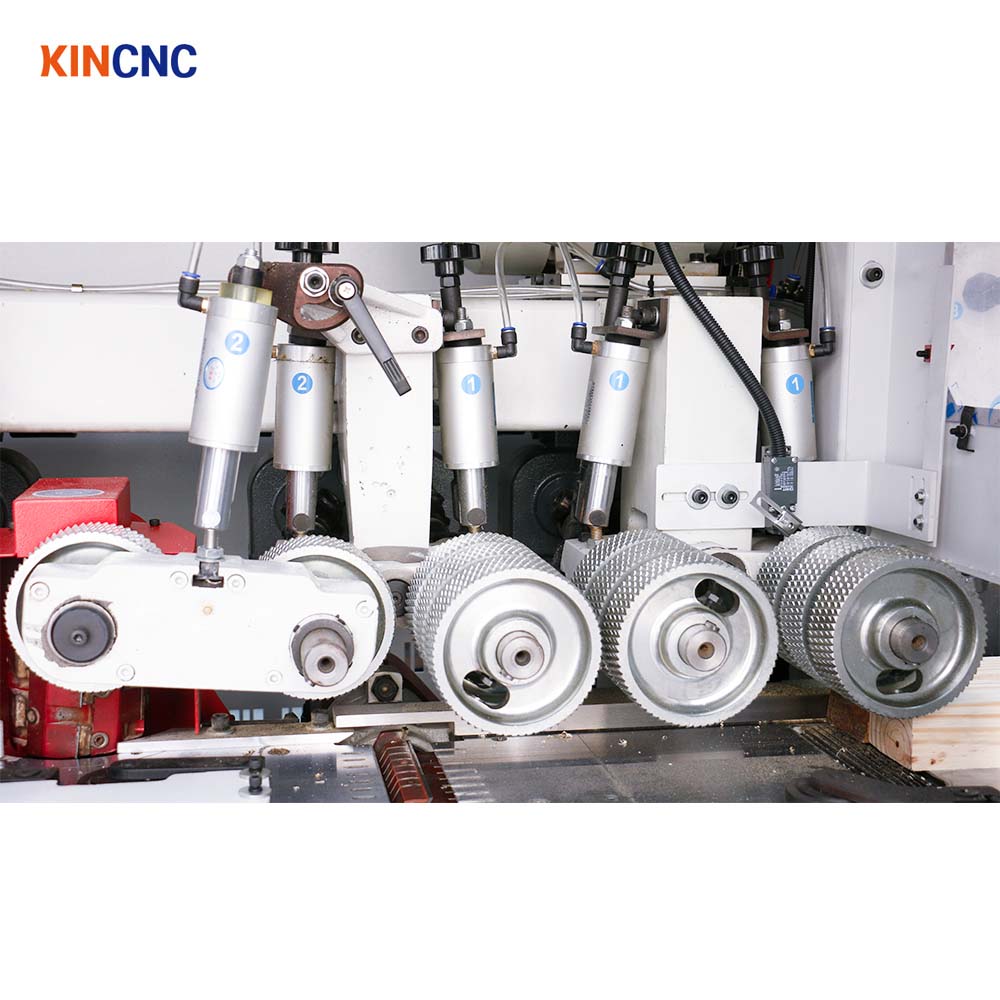

Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages;

Which is favorable for smooth feeding of timbers with different thickness;

Contact Us


Video Description


Product Description


PARAMETER


ModelMBQ630A
Machine parameter
Working width 25-300mm
Working thickness8-200mm
Feeding speed10-40m/min
Main shaft diameter2000mm
Spindle diameterΦ40mm
Axial movement0-20mm
Main shaft revolution 6000r/min
Pneumatic source pressure0.6Mpa
Motor power
First bottom spindle11kw
Right side spindle7.5kw
Left side spindle7.5kw
First top spindle15kw
Second top spindle15kw
Second bottom spindle11kw
Feed5.5kw
Feed beam rise&fall1.1kw
General power73.6kw
Cutting circle(mm)
First bottom spindleΦ125-Φ140

Right side spindle

Φ125-Φ180
Left side spindleΦ125-Φ180
First top spindleΦ125-Φ180
Second top spindleΦ125-Φ180
Second bottom spindleΦ125-Φ140
Remarks/mm
Dust outlet diameterΦ140mm
Feeding wheel diameterΦ140mm
Overall Dimensions(mm)4100*1700*1760
Net weight5800kg
