Product Description

Technical parameters:

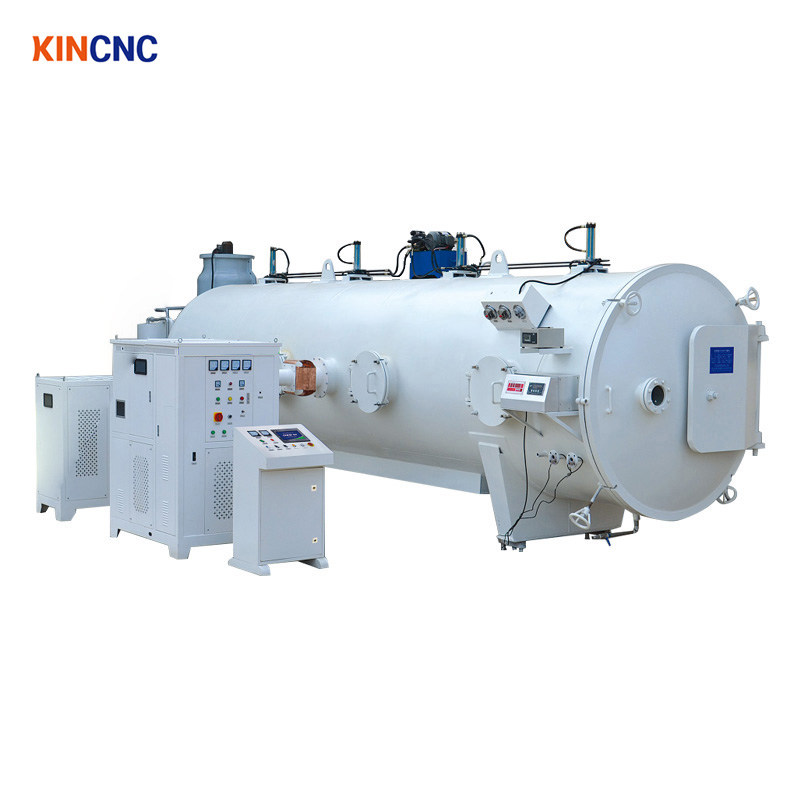

This equipment includes: Vacuum drying container, HF heating system, vacuum zing system, control operation system, cooling cycle system, moisture testing device, Temperature control device, pressure control device ect.matched timber carriage device, track rack, hydraulic system of top pressing timber, alarming device.

1.Timber capacity: 3m³

2.Vacuum degree: -0.07～0.09MPa, adjusting according to needs.

3.Dry Temperature: ≤90℃，you can set by user.

4.Dry Timber species: various of wooden timber

5. Initial moisture: < 40%

6. Finial moisture: user set it according to needs.

7. HF generator: 20KW

8.HF generator Frequency: 6～13.56MHZ

9. Temperature control: Temperature testing meter

10. Moisture checking: adopts weight method and moisture testing meter.

11. Safety protection: Spark suppression and smog alarming.

12. Avaliable Loading timber size: 1000mm(H)×1000mm(W)×3000mm(L)

13. Control system: Manual delay
